Women's Custom Made Electric
Downhill Mountain Bikes

We fully understand that what Women need in a bike can be quite different from what Men want or need in a bike. This can include smaller sized parts - such as wheels, shorter cranks, different handlebar stems and so on. The total weight of Women's e-downhill mountain bikes is also crucial and we save grams wherever we can to make your bike as light as possible. Lets face it - lighter bikes are always more fun!

My goal is to give back downhill mountain biking enjoyment to rider's like myself that may be getting older and have had some serious injuries in the past. Whether its from issues such as this or breathing difficulties from asthma or other issues, I have found it increasingly difficult to climb Seymour, Cypress or Fromme Mountains with my Downhill Mountain Bikes - particularly because of the severe damage to my left knee and the pain caused by applying pressure to the pedal. The Answer: Electric Pedal Assist Motor Conversions allow riders to have varying levels of power assist to be able to get back up the mountain. Many kits also have a throttle option that permits power without pedalling.

As of October 2025, I recently saw that Specialized was offering an electric assist dual suspension all mountain bike (yes - not even a downhill bike) for $20,000 USD. That is insane! I believe it has only a 350 Watt motor and far smaller battery pack than that on the following 2000 Norco Shore Ladies Downhill eBike. Lets make your existing bike do more for you at a fraction of the price!

It's really simple to get your own mountain bike converted:
  • Phone me at: 604-510-0800 or Email me at: siteinfo@shaw.ca
  • Bring us your own bike that you want modified
  • Discuss with us the options and upgrades that you want that can include electric motor kits, custom paint, custom graphics, custom parts and custom machining of specialty parts
  • If you are not familiar with or have never tried an electric dual suspension mountain bike I will be happy to take you on a local/ close by test ride on either my yellow large size frame 2001 Norco dual suspension (for riders 5 foot 10 inches and taller) or the black 2000 Norco Shore medium size frame dual suspension mountain bike shown below. Both have the mid mounted Bafang 750 Watt 51 Volt electric pedal assist motor systems with throttles. I have an easy short trail near my home that has some small jumps and nice turns and about 500 meters from this trail there is a jump park with dirt jumps of varying sizes. I will require you to bring your driver's license or passport, your helmet, gloves and any other protective equipment that you normally wear.
  • I will prepare a written estimate for you and as soon as you confirm and leave me a deposit I will get started!
  • Pick up your updated bike when ready!

Most importantly, we will build your downhill electric mountain bike exactly how you want it done! We also fully understand that what Men need in a bike can be quite different from what Ladies want or need in a bike. Apart from smaller frame sizes, we can also look at smaller wheelsets (24" or 26"), shorter handlebar stems and a variety of handlebars to suit your riding posture.

Downhill electric mountain bike video coming soon - check back!

custom built electric downhill mountain bike spacer

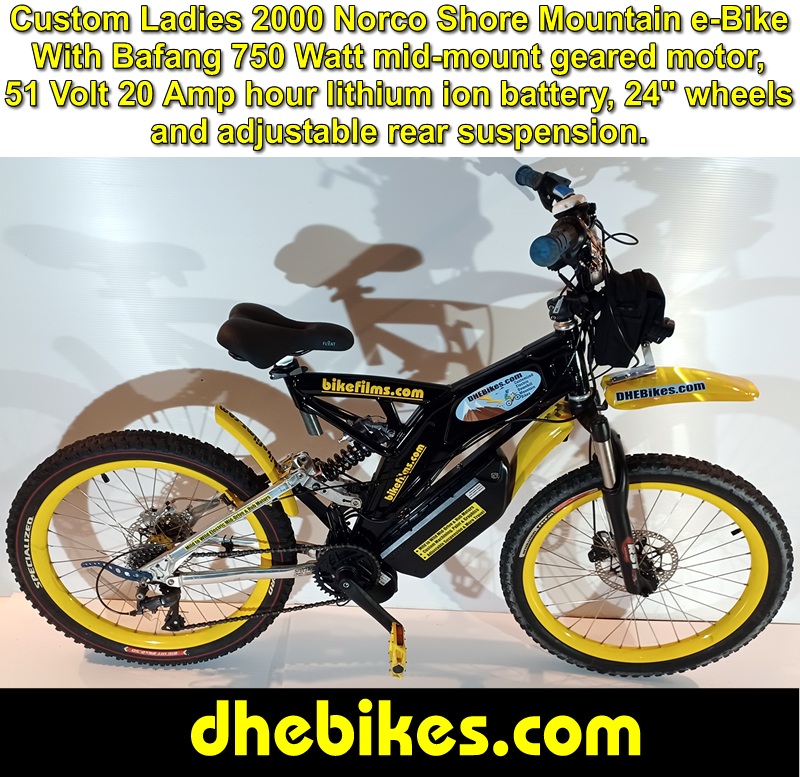

Women's custom 2000 Norco Shore Electric Downhill Mountain Bike with over 7 inches rear travel, Bafang 750 Watt 51 Volt e-bike mid-mount motor kit, Hope and Shimano disc brakes and custom machined 6061 aircraft aluminum mountain bike parts

2000 Norco Shore Women's Demo
Downhill Electric Pedal Assist Mountain Bike Highlights:

  • This bike was built with riders from 5 feet tall to about 5 foot 10 inches tall in mind. In fact, I used to race on this frame for 1 season and I am 6 feet tall. However, I did find the cockpit a bit on the short side so I went back to large size frames.
  • 6.2 inches rear wheel travel achieved through the Stratos longer travel air/ oil/ coil shock with remote lockout on the left hand Gripshift. Presently has 2 rear shock positions from the stock linkage plates but I plan to put one of my original custom rear shock link plate sets so that the bike will have over 7 travel and head angle positions. This will also give the ability to further decrease the standover height for shorter riders.
  • RST 26 inch front single crown fork about 130mm travel. This is more of a cross-country fork.
  • 24 inch wheels and tires - this helps decrease the standover height for shorter riders.
  • I have put a special 6" super high rise bar on this ebike for a totally relaxed rider position and they are tilted back a little for Ladies with shorter arm reach.
  • Bafang 750 Watt, 51 Volt mid-mounted electric ebike conversion kit - complete with 20 Amp hour 51 Volt lithium ion battery, Bafang deluxe digital display with speedo/ battery level and level of assist indicator, Bafang handlebar controls and left hand 1/2 twist throttle. This motor kit is designed as "electric pedal assist" meaning it is designed to be used while pedalling with the ability to custom program how much electric assist occurs at each of the 10 power settings accessed through the handlebar control. I also added an optional twist throttle for demonstration purposes. The kit also comes with a headlight.

    This electric kit is designed to be street legal and automatically cuts power at about 35 km/h. It can be custom programmed with special hardware and software to remove the governor.

    I chose the mid-mounted motor design for the main reason because it really centers the weight on the ebike.
  • Chris King headset
  • Shimano XT drivetrain
  • Shimano XT front disc brake
  • Hope rear disc brake
  • DH Dave's custom rear chain tensioner
  • SRAM ebike chain
  • Total bike weight: 60.5 pounds. I estimate the weight of the battery and motor system to be just over 20 pounds so the base bike would be a little under 40 pounds.

Phone me at: 604-510-0800 or
Email me at: siteinfo@shaw.ca

to arrange a test ride or to get started!

custom built electric downhill mountain bike spacer

Below are just a few pics showcasing some of the custom Ladies Electric Downhill Mountain Bike work that I offer:

Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations side view showing the Hope 2 piston downhill brakes, 24 inch wheelset and the Bafang 750 Watt mid mount electric motor kit with 20 Amp hour lithium ion 51 Volt battery.
Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations side view showing the Stratos rear air/ oil/coil shock with remote lockout and the Bafang 750 Watt mid mount electric motor kit with 20 Amp hour lithium ion 51 Volt battery.
Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations cockpit view showing the GripShift shifters, high rise bar and the Bafang 750 Watt mid mount electric motor throttle.

Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations side view showing the Hope 2 piston downhill brakes, 24 inch wheelset and the Bafang 750 Watt mid mount electric motor kit with 20 Amp hour lithium ion 51 Volt battery.

mountain bike services spacer
mountain bike services spacer
mountain bike services spacer
Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations cockpit view showing the GripShift shifters, high rise bar and the Bafang 750 Watt mid mount electric motor throttle.
Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations side view showing the Hope 2 piston downhill brakes, 24 inch wheelset and the Bafang 750 Watt mid mount electric motor kit and display with 20 Amp hour lithium ion 51 Volt battery.
Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations side view showing the Stratos rear air/ oil/coil shock with remote lockout and the 24 inch downhill mountain bike wheelset.
mountain bike services spacer
mountain bike services spacer
mountain bike services spacer
Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations side view showing the Hope 2 piston downhill brakes, 24 inch wheelset and the Bafang 750 Watt mid mount electric motor kit and display with 20 Amp hour lithium ion 51 Volt battery.

Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations cockpit view showing the GripShift shifters, high rise bar and the Bafang 750 Watt mid mount electric motor throttle.
mountain bike services spacer custom built electric downhill mountain bike spacer

Custom made to order Womens electric downhill mountain bike by Pinnacle Innovations side view showing the Hope 2 piston downhill brakes, 24 inch wheelset and the Bafang 750 Watt mid mount electric motor kit and display with 20 Amp hour lithium ion 51 Volt battery.


mountain bike services spacer
mountain bike services spacer

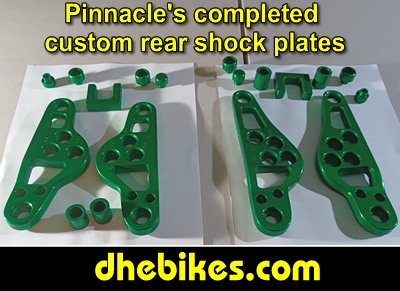

Pinnacle Innovations' custom made rear suspension linkage plates - made from 6061 aircraft aluminum that permit super long rear wheel travel and fully equipped with bearings on all pivots and custom anodized lime green

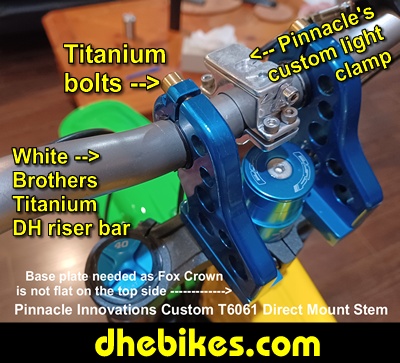

Pinnacle Innovations' custom made high rise double clamp bar stem - made from 6061 aircraft aluminum and custom anodized blue
We offer not only custom paint in any colour you can imagine but also custom replacement decals for things like Fox forks
Photo showing the planing the thickness of the 3/4 inch thick 6061 aluminum rear suspension plates that will almost double the amount of travel.
