Custom Electric Downhill Mountain Bikes
My goal is to give
back downhill mountain biking enjoyment to rider's like myself that
may be getting older and have had some serious injuries in the past.
Whether its from issues such as this or breathing difficulties from
asthma or other issues, I have found it increasingly difficult to climb
Seymour, Cypress or Fromme Mountains with my Downhill Mountain Bikes
- particularly because of the severe damage to my left knee and the
pain caused by applying pressure to the pedal. The Answer: Electric
Pedal Assist Motor Conversions allow riders to have varying levels of
power assist to be able to get back up the mountain. Many kits also
have a throttle option that permits power without pedalling.
As of October 2025, I
recently saw that Specialized was offering an electric assist dual suspension
all mountain bike (yes - not even a downhill bike) for $20,000 USD.
That is insane! I believe it has only a 350 Watt motor and far smaller
battery pack than that on my 2001 Norco VPS Downhill eBike. Lets
make your existing bike do more for you at a fraction of the price!
|
It's
really simple to get your own mountain bike converted:
|
-
-
Bring
us your own bike that you want modified
-
Discuss
with us the options and upgrades that you want that can include
electric motor kits, custom paint, custom graphics, custom parts
and custom machining of specialty parts
- If you are not
familiar with or have never tried an electric dual suspension mountain
bike I will be happy to take you on a local/ close by test ride on
either my yellow large size frame 2001 Norco dual suspension (for
riders 5 foot 10 inches and taller) or my black 2000 Norco Shore medium
size frame dual suspension mountain bike. Both have the mid mounted
Bafang 750 Watt 51 Volt electric pedal assist motor systems with throttles.
I have an easy short trail near my home that has some small jumps
and nice turns and about 500 meters from this trail there is a jump
park with dirt jumps of varying sizes. I will require you to bring
your driver's license or passport, your helmet, gloves and any other
protective equipment that you normally wear.
- I will prepare
a written estimate for you and as soon as you confirm and leave me
a deposit I will get started!
- Pick up your updated
bike when ready!
Most importantly,
we will build your downhill electric mountain bike exactly how
you want it done! We also fully understand that what Men need in a bike
can be quite different from what Ladies want or need in a bike.
|

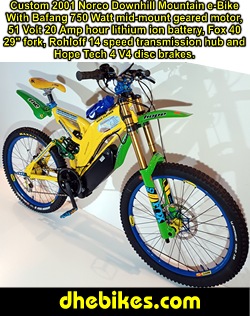

DH Dave's 2001
Norco Demo Downhill Electric Pedal Assist Mountain Bike Highlights:
-

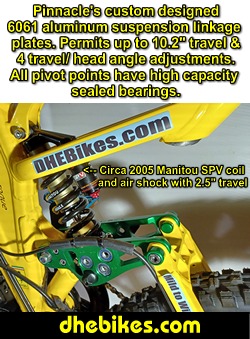

10.2
inches or 260 mm rear wheel travel (stock was about 6.2")
achieved through DH Dave's custom made rear shock plates and the
Manitou SPV longer travel air/ oil/ coil shock
-
Fox
40 29 incher front downhill fork about 8 inches travel), triple
clamp with DH Dave's custom made 6061 aircraft aluminum direct
mount stem and White Brothers titanium downhill riser handlebar.
In addition, as this Norco frame has such a tall head tube I had
to get a Risse Racing drop top crown that drops the top Fox fork
crown about 27mm. This was needed so that the 27.5 inch Michelin
2.8 inch width tire would not hit the lower fork crown.
-
Manitou
SPV rear air, oil and coil shock with 2.65" travel
-
Bafang
750 Watt, 51 Volt mid-mounted electric ebike conversion kit -
complete with 20 Amp hour 51 Volt lithium ion battery, Bafang
deluxe digital display with speedo/ battery level and level of
assist indicator, Bafang handlebar controls and left hand 1/2
twist throttle. This motor kit is designed as "electric pedal
assist" meaning it is designed to be used while pedalling
with the ability to custom program how much electric assist occurs
at each of the 10 power settings accessed through the handlebar
control. I also added an optional twist throttle for demonstration
purposes. The kit also comes with a headlight - which you can
see mounted on the Womens
ebike page.
This electric kit is designed to be street legal and automatically
cuts power at about 35 km/h. It can be custom programmed with
special hardware and software to remove the governor.
I chose the mid-mounted motor design for two main reasons: so
that I could use the Rohloff 14 speed transmission hub and because
it really centers the weight on the ebike.
-

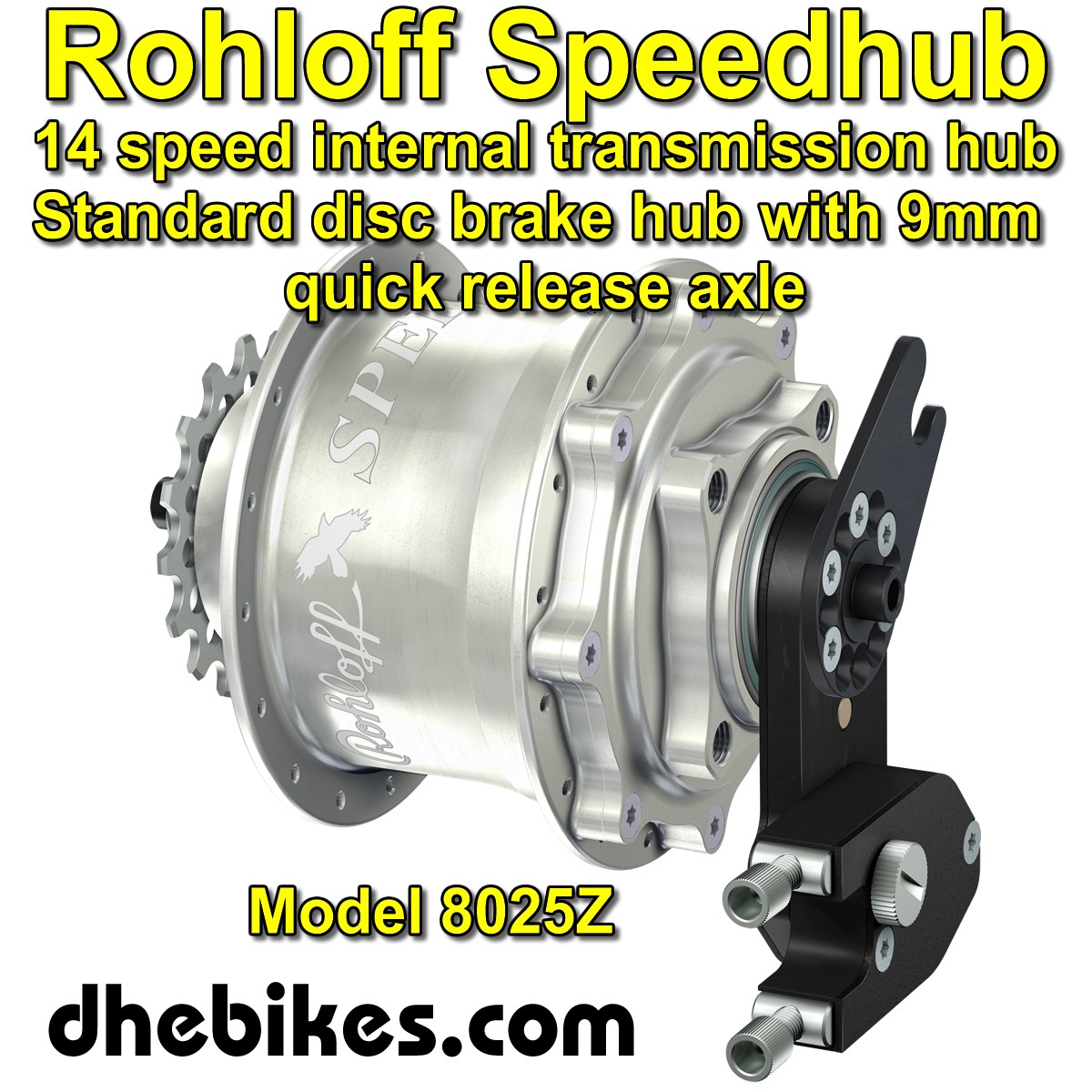

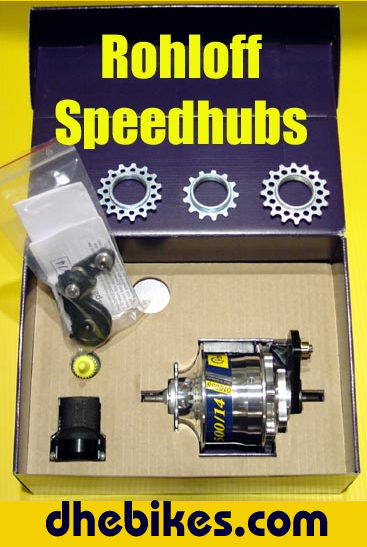

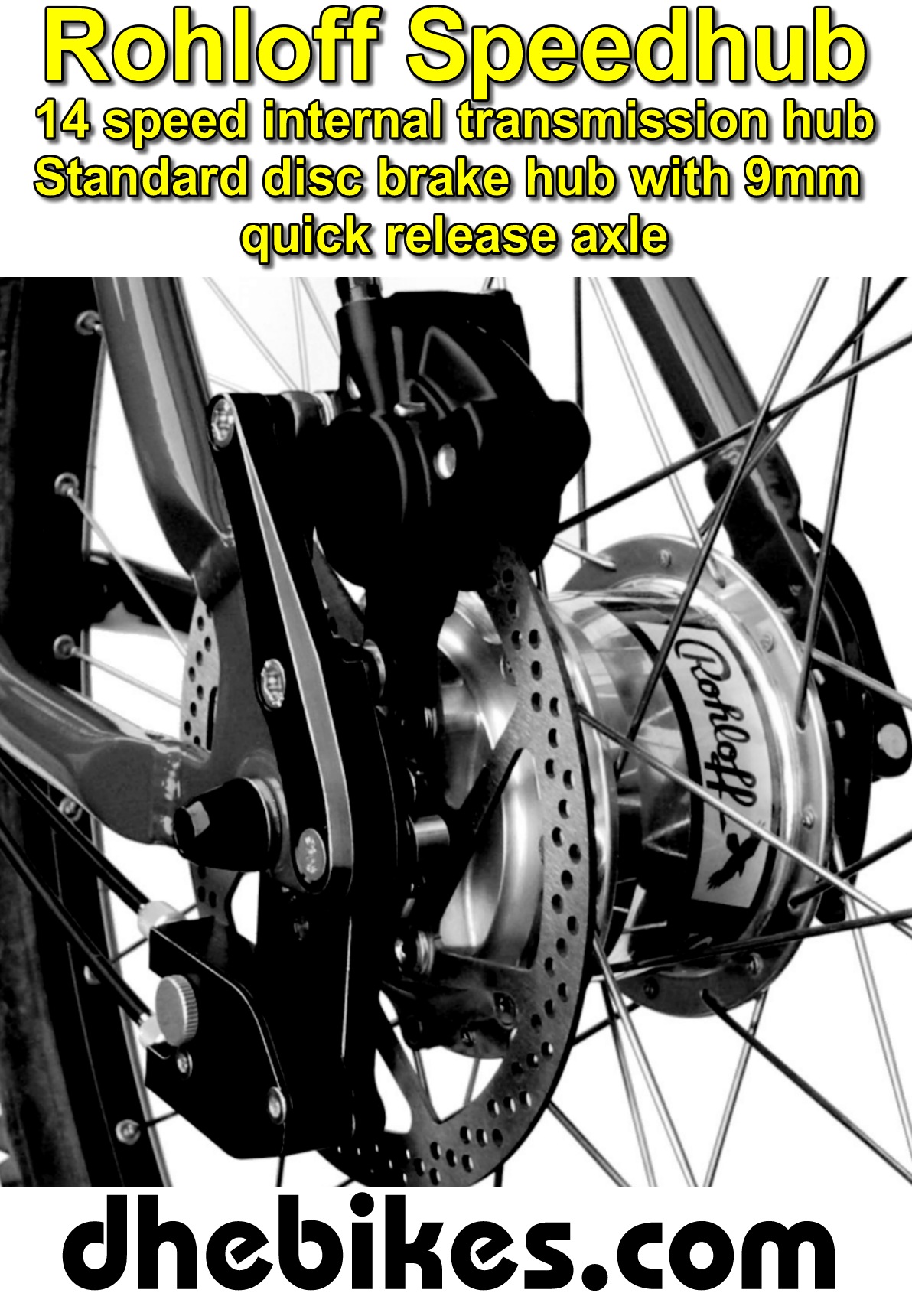

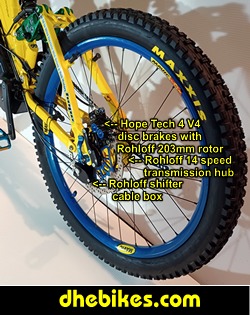

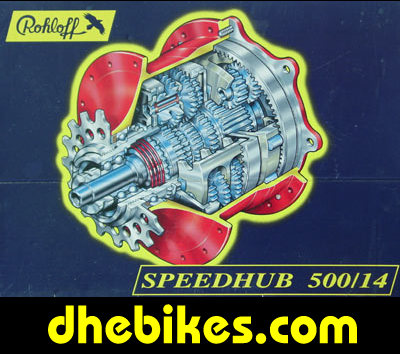

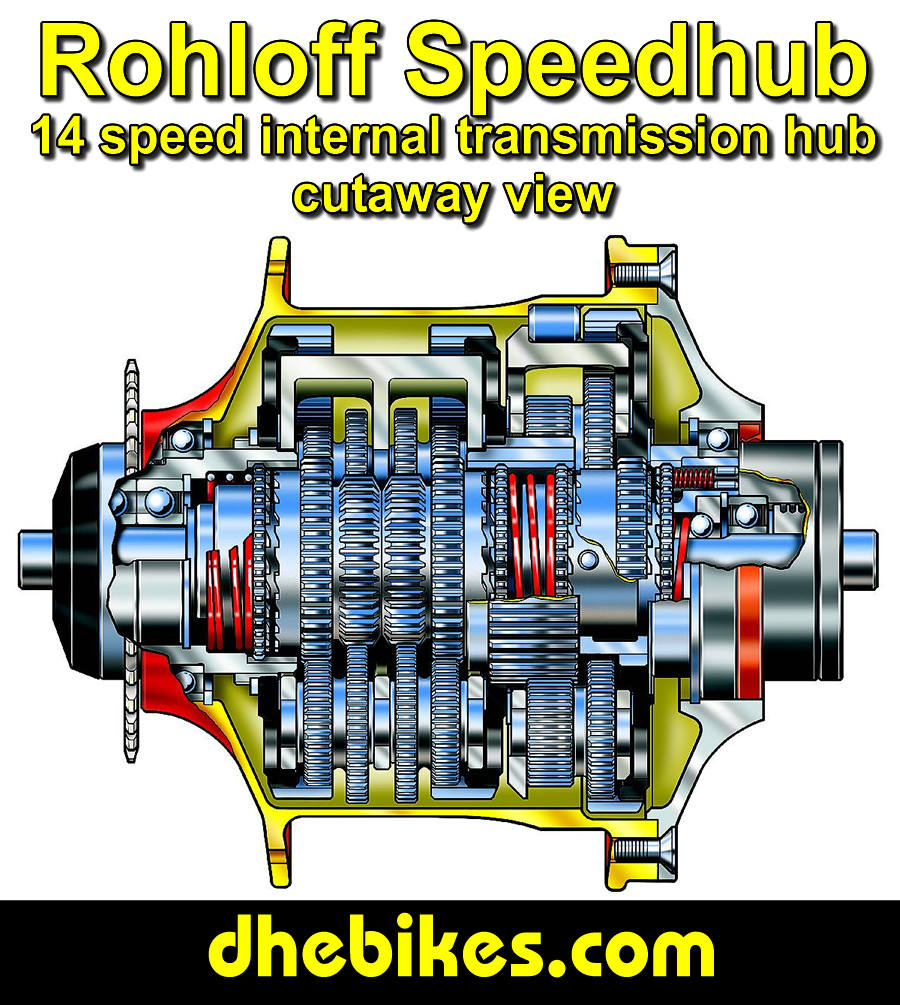

Rohloff
Speedhhub - 14 speed internal transmission gear hub that is the
equivalent of any regular 27 speed mountain bike drivetrain. You
change gears through a single Grip Shifter. There are a huge number
of advantages of the Rohloff Speedhub including:
- Shift one
to 14 gears while standing still without pedalling. This is
great if you are in the middle of a technical section or at
the lip of a drop and find yourself in the wrong gear.
- Perfect chainline
all the time.
- Extremely
durable - many riders have recorded over 10,000 miles before
needing a rebuild.
- No huge weight
penalty - overall, the Rohloff Speedhub adds about 2.5 pounds
over a conventional derailluer 27 speed drivetrain.
- The slightly
heavier rear hub helps me when jumping or doing drops and
naturally helps to keep the front of the bike up while airborne.
- No derailleur
hanging down to get caught up on rocks or roots. In fact,

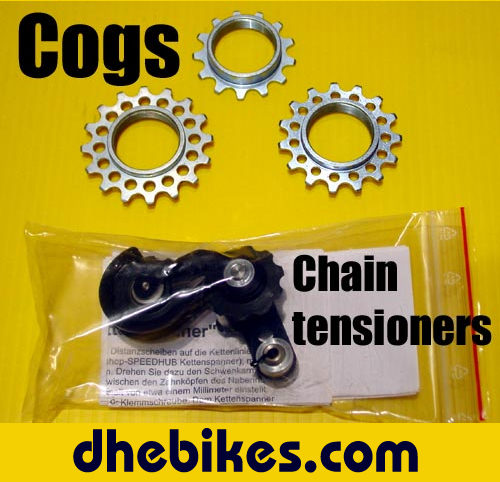

even if you do bend the shorty chain tensioner, you will still
be easily able to ride.
- High spoke
flanges ensure a strong wheelbuild.

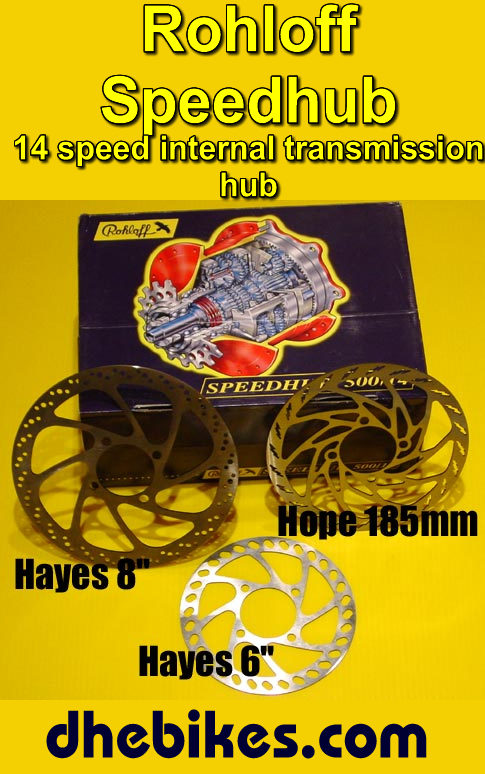

- Many options
available including regular 135mm quick release to 150mm thru

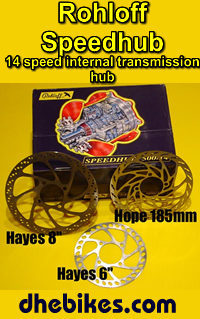

axle hubs - all disc brake compatible but you will need a
special 4 bolt disc brake rotor.
- See
more details about the Rohloff hub below

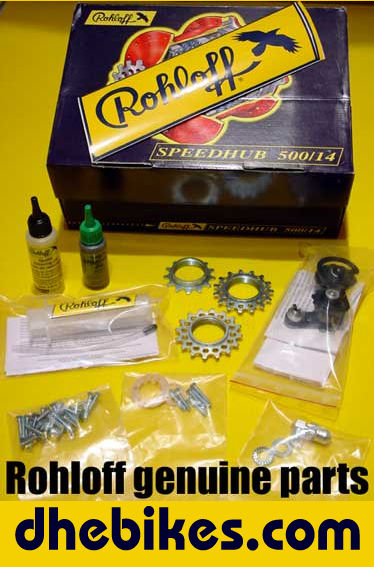

or on

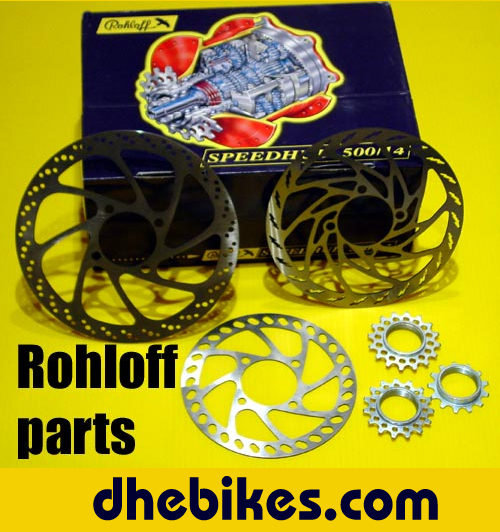

the Rohloff parts page...
-
26
inch Mavic 321 downhill rear rim with Michelin DH34 2.5 inch width
downhill tire (close to 2.5 pounds for this tire!), 27.5 inch
Mavic DeeMax front wheel with Mavic thru axle hub and Michelin
Wild 27.5 inch by 2.8 inch wide downhill tire (close to 3 pounds
for this tire!). Both wheels use Maxxis Freeride tubes.
-
Rockbros
pedals
-
Full
Speed Ahead (FSA) headset
-

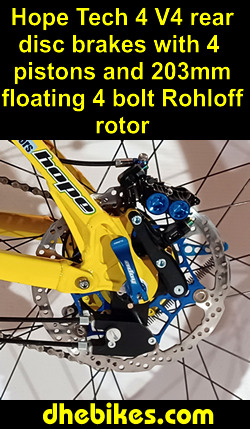

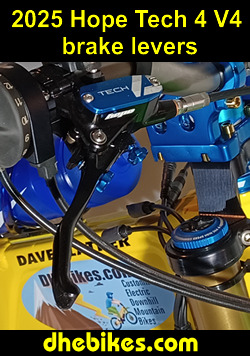

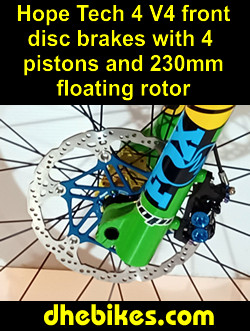

2025
Hope Tech 4 Version four piston downhill brakes with 230mm front
rotor and 203mm rear 4 bolt Rohloff rotor. These are super strong
and very natural feeling disc brakes with floating rotors.
-
DH
Dave's custom rear chain tensioner together with DH Dave's custom
designed "Mr. T" chain tensioner.
-
Long
downhill seat with chromo rails
-
4
rear shock positions with 10.2 (260mm) to 8.2 inches of travel
and 4 head angle positions from 62 to 66 degrees.
-
SRAM
ebike chain
-
Total
bike weight: A hair under 60 pounds. I estimate the weight of
the battery and motor system to be just over 20 pounds so the
base bike would be a little under 40 pounds.
Phone
me at: 604-510-0800 or
Email me at: siteinfo@shaw.ca
to arrange a test ride or to get started!
|
